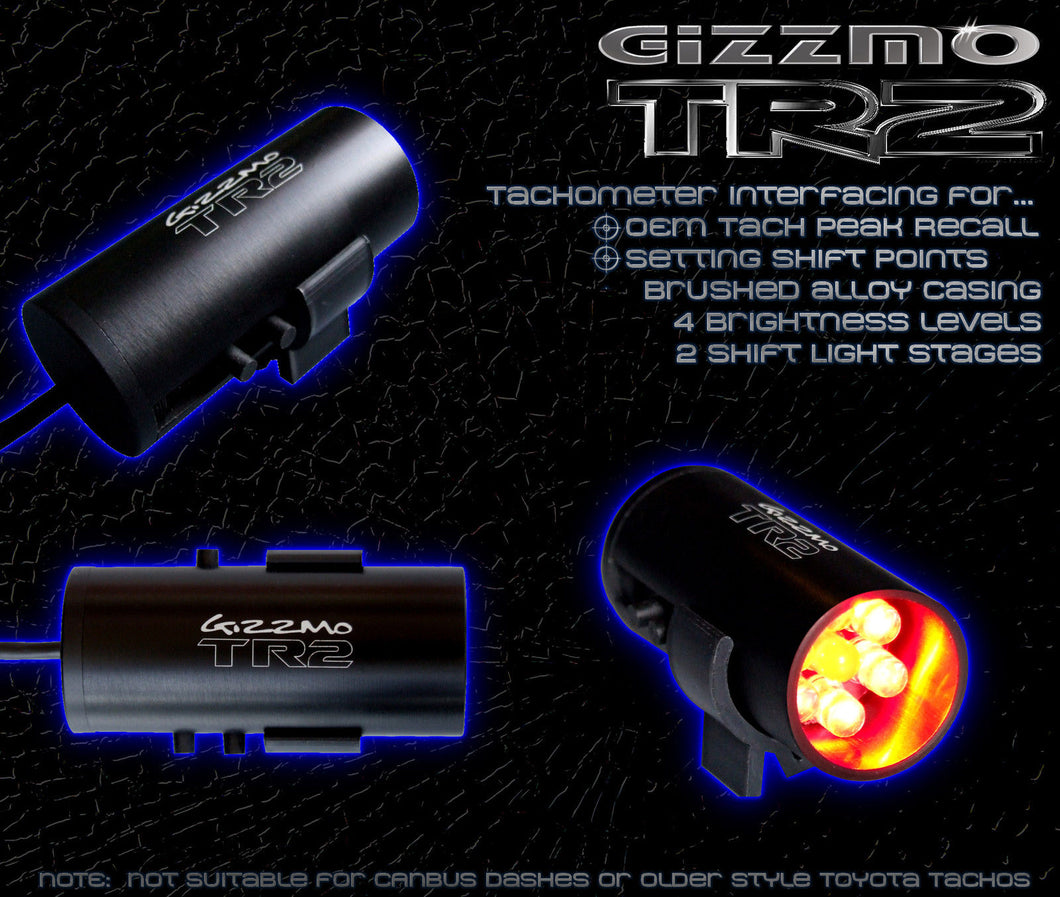

New Genuine * GIZZMO AUSTRALIA * TR2 Shift Light Tachometer for Skyline 200SX RX7
NEW MODEL - Gizzmo TR2 Shift light
The Gizzmo TR2 Shift light is unique in bringing the features of an advanced aftermarket tachometer into any conventional tacho. The Gizzmo TR2 Shift light allows any conventional tachometer to have a peak rpm recall that can be displayed via the factory tachometer in addition to having a two stage shift light and 4 brightness settings and an opening ceremony.
Once installed, whenever the ignition is switched on, the Gizzmo TR2 Shift light will display the second stage shift light setting and then first stage shift light setting, by indicating the rpm position on the tacho and flashing the corresponding LEDâ€™s. This sequence will occur whenever the ignition is turned on.
IMPORTANT APPLICATION NOTE:
Some, but very, very few, vehicles utilise an impulse type Tachometer, typically older Toyota's. These Vehicles will either require a slight Tachometer modification or will require the TR2 to run in dual stage mode which will remove the Tach interfacing functionality.
Operating Instructions Warnings:
1: Incorrect installation can damage this product
2: Gizzmo Electronics will not warranty any item that has been damaged due to incorrect installation or misuse of product.
3: Never disassemble, modify, or tamper with unit. Failure may cause injury fire and void warranty.
Start up Sequence
When ignition is turned on the tacho will...
1. Display second stage shift point whilst flashing the second stage shift light then...
2. Display first stage shift point whilst flashing first stage shift light then...
3. Return to running mode.
About the Peak Recall Function
The Gizzmo TR2 Shift light allows the user to display the peak rpm for the current trip e.g. current trip being since ignition key ignition was last switched on simply by briefly pressing the mode button once. If you press the mode button again whilst the peak rpm is being displayed it will reset the max recall.
Red - 12v ECU Positive
Yellow - ECU Negative
Green - Tacho Signal in (from ECU) Tacho
Blue - Signal out (to the tachometer)
The signal to the tacho runs in series THROUGH the Gizzmo TR2 shift light. The tacho signal enters the shift light via the green wire. The signal then passes through the shift light and continues out through the blue wire to the tachometer. Power and earth signals are best taken from the engine ECU. The tacho signal is best taken from the rear of the instrument cluster or engine ECU where applicable.
An auto electrician should carry out the installation of this product.
To Switch between Tach Recall and Dual Stage modes
With the key OFF, hold down all 3 of the TR2's buttons, and while doing so, turn ON the ignition. Continue to hold down all the buttons until the TR2's LED's start flashing, and then you can release the buttons.
In normal Tach Recall mode
Under normal running conditions the UP and DOWN buttons will adjust the TR2's brightness whilst in setting mode they will adjust the shift points as outlined below.
Pressing the MODE button once will display the Peak rpm reached since last starting the vehicle; you can press it again whilst displaying the rpm recall to erase the present max rpm. Holding the MODE button will enter you into the setting mode outlined below
Setting the shift points in Tach Recall mode
1. Start and idle the vehicle
2. Hold the MODE button in for 2 seconds, the center LED willl start flashing
3. If you wish to change the SECOND stage shift point, briefly push the UP or DOWN button which toggles between the first and second stages. The second stage LEDs will start flashing.
4. Having now selected which shift point you want to adjust, briefly press the MODE button, you will notice the LED's start flashing differently to confirm your selection.
5. Press and hold the UP or DOWN buttons to adjust the tachomter needle to the desired shift point.
6. Briefly press the MODE button to save and exit the setting mode returning you into the normal running mode.
Setting the shift points in Dual Stage mode
1. Start and idle the vehicle.
2. Increase the engine revs to a half of the desired shift rpm. If you are wishing to set the FIRST stage, briefly press the UP button once OR if you want to set the SECOND stage, press the DOWN button once. The TR2 will automatically sve the setting.
â€¢ The shift light does not flash when ignition switched on.
Check to make sure power and earth are connected, to the correct wires and that the connections are sound.
â€¢ The tacho does not work, or does not move as per the operating instructions, but the shift light does flash the opening ceremony.
Check the connections between the tacho and the shift light are correct. If they are, try fitting the supplied resistor in
between the TR2's red and blue wires. If the tach still does not work, the vehicle may be fitted with and impulse type
tachometer which will only work with a slight modification.
â€¢ The shift light flashes erratically and/or at the wrong time.
The unit is receiving excessive ignition noise. Try a different 12v ignition source and/or tacho input signal.
â€¢ The shift light does the opening ceremony but does not operate with engine RPM.
Check the Tachometer input signal with a scope. Try fitting the supplied resistor between the tach recalls â€˜Greenâ€™ & â€˜Redâ€™ wires. If this does not work, try fitting the resistor between the â€˜Greenâ€™ & â€˜Yellowâ€™ wires, if still the tachometer does not work, Please contact your Gizzmo national distributor.
