TOMEI EXPREME OUTLET TURBO DUMP PIPE for NISSAN SKYLINE R32 R33 R34 RB25DET

Regular price $599.99 Sale

GENUINE TOMEI - TURBINE OUTLET PIPE TO SUIT RB20 / RB25 DET

ã€€

Efficient High Flow Design
For Both RB20 & RB25 Engines

With a smooth inner walls, high flow capacity, easy to install flange design for an easy direct bolt on application.
Compatible with the stock turbo and the Tomei ARMS Turbo will contribute with improving the power output. Designed to suit a Î¦76.3mm front pipe.

	MATERIAL	EXIT DIAMETER ï¼ˆÎ¦ï¼‰	VOLUME (cc)	FLANGE THICKNESS(mm)	WEIGHT (kg)
TOMEI	SUS304	76.3	1050	12.0	1.55
STD	é‰„	60.0	750	13.8	2.25

APPLICATION:

R31,R32, C32,C33, A31, Z31
RB20DET POWERED VEHICLES

R33,R34, C34,C35,WC34
RB25DET POWERED VEHICLES

TURBO : TOMEI ARMS M8265

â– WIDE MOUTH, STEPLESS SMOOTH PORTING

The stock outlet pipes mouth is partially blocked at the port bypass side. This design is for low engine speed response. We've enlarged this section to improve power gains. By optimizing the shape of the enlarged area, we were able to prevent the loss of both torque and power in the low engine speed range.

â– 3 INCH (Ï†76.3mm) COMPATIBLE

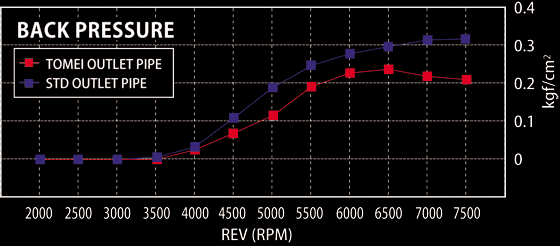

The internal diameter has been enlarged by 120%. This will significantly drop exhaust back pressure.

â– 140% LARGER

â– HIGH STRENGTH FLANGE

â– EASE OF INSTALLATION

Designed to be a hassle free installation. We have incorporated a dimple in the pipe where the bolt for the flange is located. To allow ease of access to both bolts and nuts to allow a quick, trouble free bolt on application.
